Product Overview

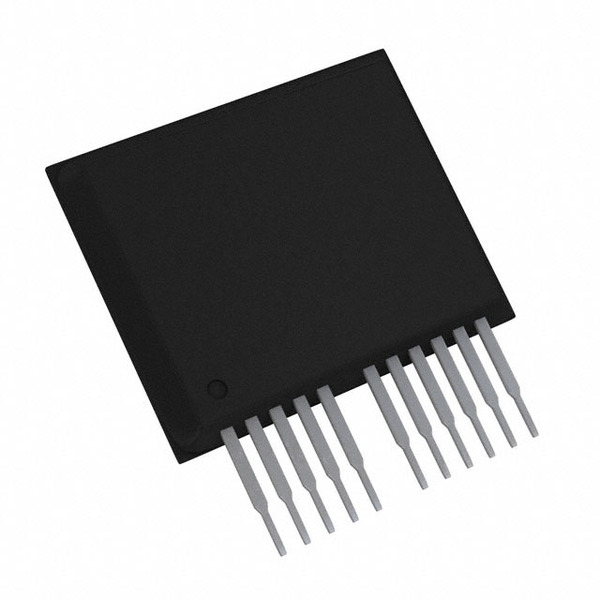

STK681-210-E

IC MOTOR DRIVER

Lead free / RoHS Compliant

10+	$4.75
100+	$4.66
1000+	$4.39
10000+	$4.30

Product Specifications

Part No.	STK681-210-E
Manufacturer	AMI Semiconductor/onsemi
Description	IC MOTOR DRIVER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3060 pcs stock
Datasheets	STK681-210-E.pdf
Voltage - Supply	4.75 V ~ 5.25 V
Voltage - Load	10 V ~ 42 V
Technology	Power MOSFET
Supplier Device Package	12-SIP
Series	-
Rds On (Typ)	-
Packaging	Tube
Package / Case	12-SIP, 11 Leads
Output Configuration	Half Bridge (2)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic
Features	-
Fault Protection	-
Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET 12-SIP
Current - Peak Output	8A
Current - Output / Channel	5.2A
Applications	DC Motors, General Purpose

In Stock: 3060 pcs Minimum 1
